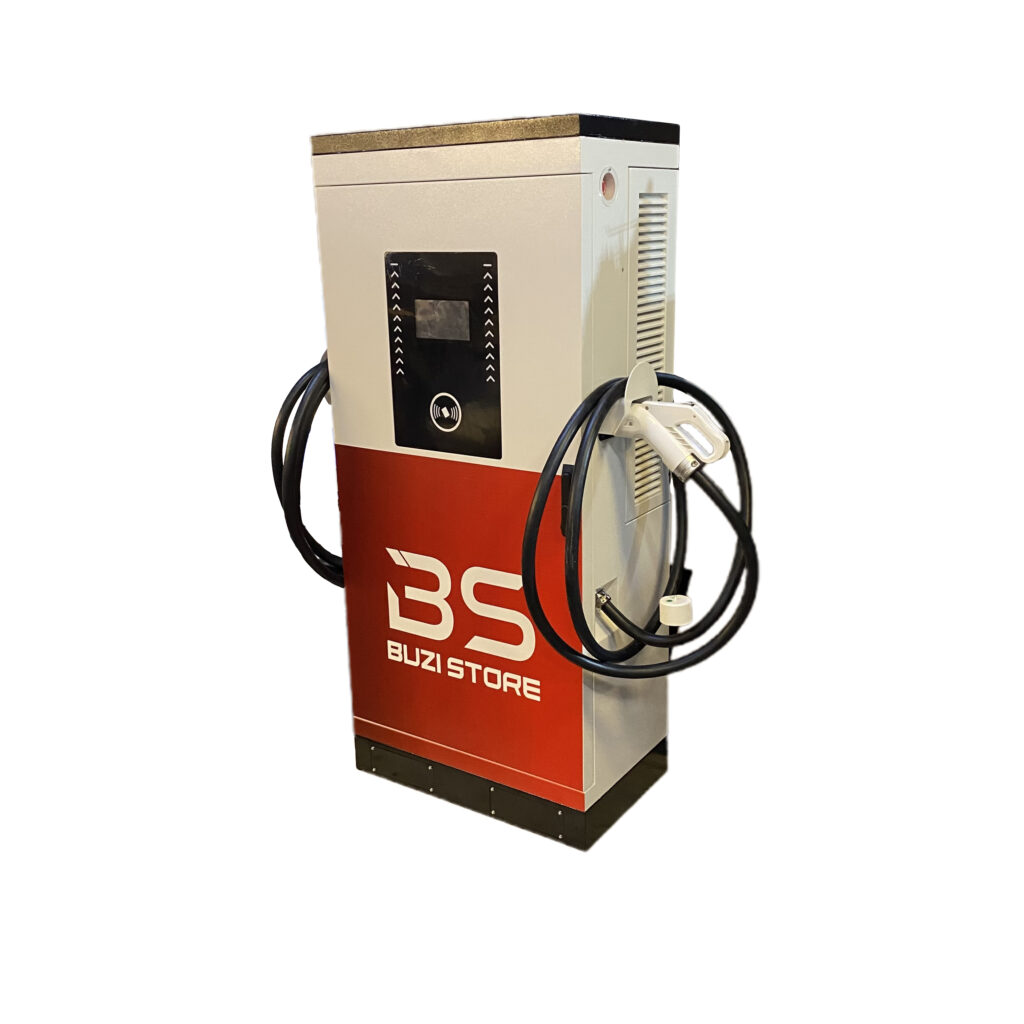

EV Charging Station (40kW)
Fast-Charger (DC): An accessory suitable for use in commercial environments. It enables the powering of electric vehicles in a short time. The presence of a charging station in your business allows you to increase your clientele with electronic devices.
Contact us
- Charging station for electric cars
- Three-phase charger.
- Model: NECS-DCI-40-2-GBT-4024
- Power (Output) 40kW (DC)
- Amperage (maximum) 100A
- Input Voltage 380VacOutput 300-1000Vdc
- 2 GBT charging pistols (Asian model)
- 4G Technology (Sim-Card)
- OCPP 1.6 protocol
- 4.7-inch touchscreen (displays useful information)
- Technology: 4G, Wireless
- LED indicator (for status).
- Dimensions: 1670 x 740 x 450mm1670 x 905.7 x 466.6mm - (including distance of handles & pistol grips)
- Ground mounting.
- It is recommended that the installation be done by a technician.
- From the back to the wall, over 30cm
- From the side of the charger to the wall, over 1.5m
- Charger with charger, over 2m
Charging station for electric cars (40kW)
Description:
Fast Charger (DC): Accessory suitable for use in commercial environments.
Enables the powering of electric cars in a short time.
The presence of a charging station in your business allows you to increase your clientele through electronic means.
Capacity 40kW: The charger enables powering your electric car with a maximum capacity of 20kW per gun.
The charger allows you to power your electric car much faster than a normal charger.
Output voltage 300-1000Vdc with amperage 100A.
GBT Charging Pistol: The charging station is equipped with two GBT (Asian) pistols.
Each has a cable length of 5 meters, allowing it to power two electric cars simultaneously.
The station uses OCPP 1.6 protocol.
Different modalities: The charging station allows charging to be started in different ways, with an NFC card, via QR code or panel.
The control panel is equipped with a touch screen.
In which necessary information for the use of each pistol is displayed.
It is recommended that the installation of the station be done by an expert,
Ground assembly – which is suggested to be done remotely for safety and work efficiency.
With a wall, 30cm from the back of the charger and 1.5 meters from the side of the charging station.
If you want to install another charger, a distance of 2 meters from each other is suggested.
