H250862

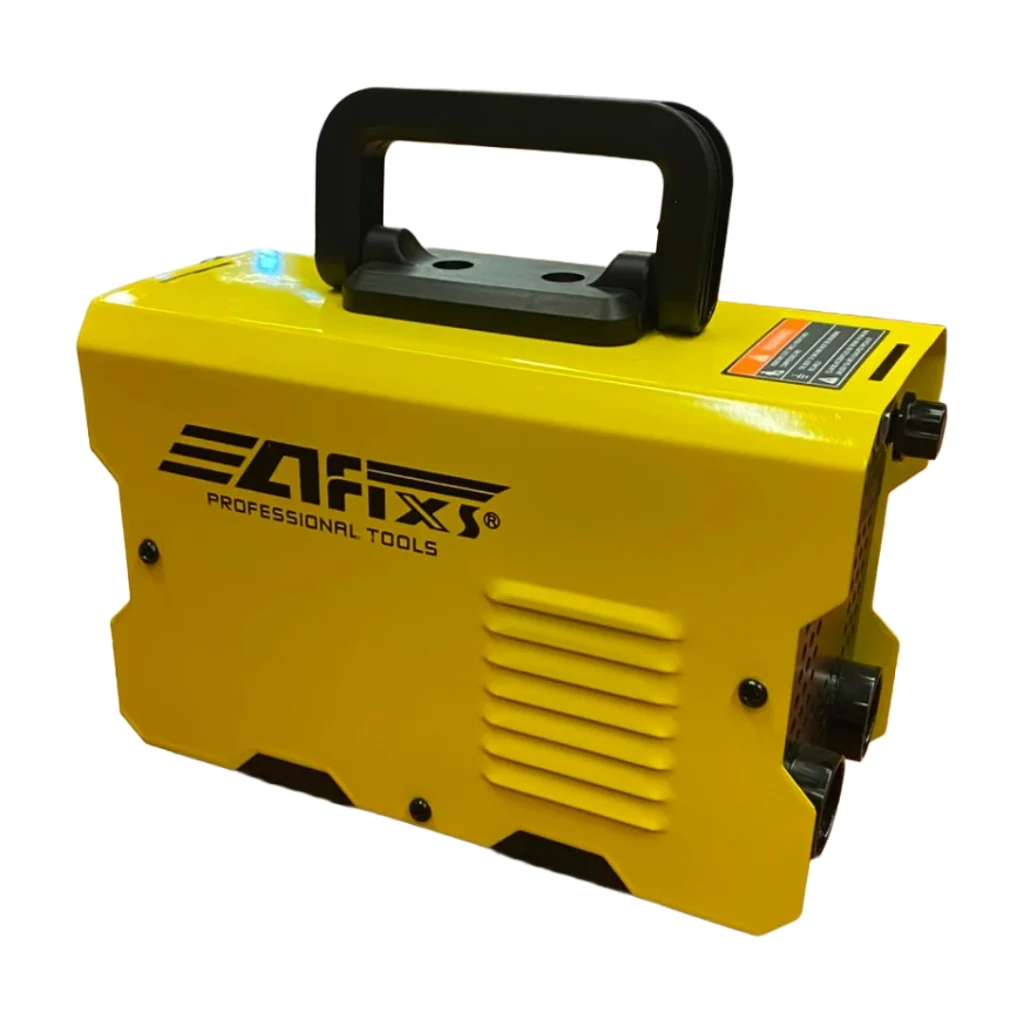

IGBT Inverter Welder (MMA-250)

In stock 3 sold In Aksesore te Tjere Pune

Welding Machine: This welding machine uses inverter technology with IGBT transistors and is designed for various welding jobs. The welding current can be adjusted from 5 to 160A, allowing the power to be adjusted according to the type of work and…

Current price 4000 L

Fast delivery in Albania In stock and ready for delivery

Order now

Ask on WhatsApp

Welding machine
Dimensions: 22x16x10 cm
Power cable 1m long
Inverter technology with IGBT transistors
Welding current: 5-160A
Welding modalities: MMA and TIG
Current voltage 220/230V, 50 Hz
Signal light
Alarm light (indicates when thermal protection is activated)
Digital display
Electrode cable: 160 cm tall
Electrode diameter: 1.6mm: current 25-40A2mm: current 40-60A2.5 mm: 50-80A3.2 mm: current 100-130A
Clamp cable: 1m long
Working conditions: below 1000m altitude above sea level, temperature -10°C to 40°C, humidity below 90%
Additional tools: hand mask, steel wire brush and hammer

IGBT Inverter Welder (MMA-250)

Welding Machine: This welding machine uses inverter technology with IGBT transistors and is designed for various welding jobs. The welding current can be adjusted from 5 to 160A, allowing the power to be adjusted according to the type of work and the electrode. The machine supports two welding modes, MMA and TIG, while operating with 220/230V, 50 Hz current.

Dimensions and working conditions: The device has dimensions of 22x16x10 cm, making it suitable for use in various work spaces. It can be used at altitudes below 1000 m above sea level, at temperatures from -10°C to 40°C and at humidity below 90%.

Display and alerts: The device is equipped with a digital display that helps control the welding current during work. There is also a signal light and an alarm light, which indicates when the thermal protection is activated. These elements help control the condition of the device during use.

Cables and electrodes: The power cable is 1 m long, while the electrode cable is 160 cm long. The clamp cable is 1 m long. For the 1.6 mm electrode, a current of 25-40A is recommended, for 2 mm 40-60A, for 2.5 mm 50-80A and for 3.2 mm 100-130A. These values help in choosing the current according to the electrode used.

Additional tools: The package also includes a welding hand mask, a steel wire brush with a hammer on the other end. These tools help during the welding process and in cleaning the surface after work.
