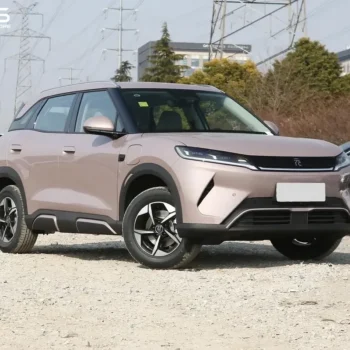

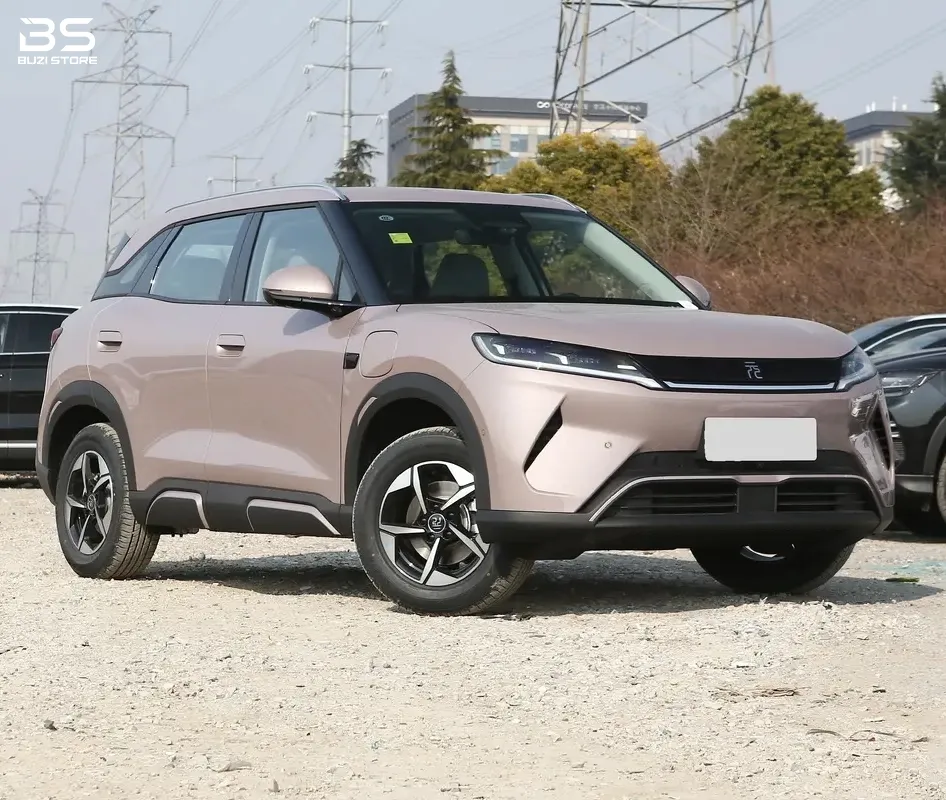

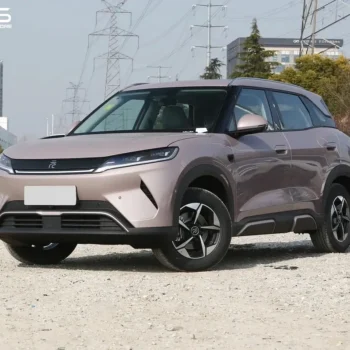

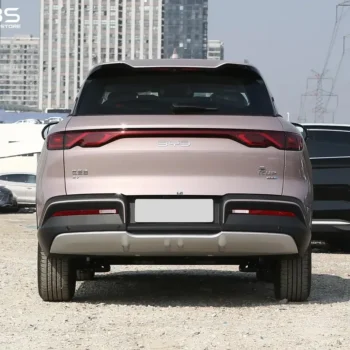

BYD Yuan Up Leading (401 km)

Basic Data:

• Autonomy (CLTC): 401 km.
• Maximum power (kw, HP): 130kw, 177hp.
• Battery capacity: 45.12kWh.
• 0-100km/h: 7.9sec.
• Maximum speed 160km/h.
• Active front wheels FWD.

Technical Parameters:

• Manufacturer: BYD.
• Car type: Small SUV.
• Energy type: Fully Electric.
• Autonomy (CLTC): 401km.
• Fast charging for about 0.5h (30-80%).
• Maximum engine power: 130kW.
• Engine power: 177ps
• Traction power: 290Nm.
• Transmission: Single-speed transmission.
• Number of gears: 1.
• Body structure: 5-door SUV & 5 seats.
• Dimensions (length x width x height): 431 x 183 x 167.5cm.
• Maximum speed: 160km/h.
• 0-100km/h: 7.9sec.
• Weight 1540 – 1915kg.

Body:

• Length (mm) 4310.
• Width (mm) 1830.
• Height (mm) 1675.
• Wheelbase (mm) 2620.
• Front axle width (mm) 1570.
• Rear axle width (mm) 1570.
• Approach angle with obstacles 18°.
• Departure angle in the mountains up to 23°.
• Minimum turning radius: 5.25 meters.
• Body Structure: SUV.
• Door opening method: by movement.
• Number of doors 5.
• Number of serdils 5.
• Luggage capacity (L) 1320.

Electric Motor:

• Engine brand: BYD.
• Engine model: TZ200XSW.
• Synchronous permanent magnet motor.
• Total Engine Power: 130kW.
• Total Engine Power in Ps: 177Ps.
• Total tractive force in N·m: 290Nm.
• Total number of engines: 1.
• Engine positioning in the structure: front.

Battery & Charging

• Battery type: Lithium battery.
• Battery cell model: FinDreams.
• Specific technology: Blade Battery.
• Battery cooling method: Direct cooling.
• Battery autonomy (CLTC): approximately 401km.
• Battery capacity: 45.12kWh.
• Battery consumption per 100km: 12.2kw.
• DC fast charging: Supports maximum charging power of 65kW.
• Fast charging time: 0.5 hours (30-80%).
• Slow power-up port position: right.
• Fast power port position: right.
• Battery management system (BMS): Yes.
• Maximum external discharge power: 3.3kW.

Dimensions & Bodywork

• Body type: SUV
• Body structure: Passenger car
• Dimensions: 431 x 183 x 167.5cm (length x width x height)
• Weight: 1520-1895kg
• Luggage capacity: 1320L
• Number of doors: 5
• Number of seats: 5
• Front suspension system: Independent MacPherson struts
• Rear suspension system: Torsion Beam

Wheels:

• Tires: 215/65 R16 (front and rear)
• Brakes on front tires: ventilated disc
• Brakes on rear tires: disc
• Electronic handbrake

Safety (Passive & Active):

• Airbag in the seat: for the driver and for the passenger.
• Side airbags: front only.
• Head airbag (curtain); front and rear.
• ABS Anti-lock Braking System.
• Braking Force Distribution (EBD/CBC) – braking force distribution.
• Brake Assist (EBA/BAS/BA): Brake assist.
• Traction Control (ASR/TCS/TRC).
• Vehicle Stability Control (ESC/ESP/DSC).
• Tire Pressure Monitoring: tire pressure monitoring screen.
• Seat belt reminder for front seats.
• ISOFIX Child Seat Interface.
• Lane Departure Warning System – lane departure warning system.
• Active Braking/Safety Systems.
• DOW Door Opening Warning.
• Forward Collision Warning – forward collision warning.
• Rear Collision Warning – rear collision warning.
• Sentry Mode/Clairvoyance.
• Low Speed Warning.
• Built-in Driving Recorder – DVR.

Direction control:

• Driving modes: Sport, Eco, Standard (Comfort), Snow.
• Energy recovery system.
• Automatic parking.
• Hill Start Assist – hill start assist.
• Steep Slope Descent – technology for descending steep slopes
• Front & rear parking sensors.
• Driving assistance view: 360° view.
• Driving assist chip: NVIDIA Orin-N.
• Chip processing power: 84 Tops.
• Front Perception Camera: 3 cameras
• Total number of cameras: 12.
• Number of ultrasonic radars (Parking sensor): 12.

Technology Direction:

• Cruise Control System: Full-speed adaptive cruise.
• Driving assistance system: DiPilot 100.
• Driving assistance: Level L2.
• Rear-end warning system.
• Satellite navigation system
• Lane change assist.
• Lane keeping system.
• Staying within the lane.
• Recognition of traffic signs.
• Parking with assistance system.
• Remote control for car parking.
• Assisted Lane Change
• Automatic Exit/Entry of Auxiliary Ramp
• Hands-Off Steering Wheel Detection

Appearance:

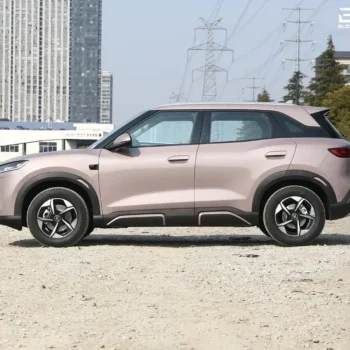

• Aluminum discs.
• Central locking.
• Key type: Remote, Bluetooth, NFC/RFID.
• Keyless ignition system.
• Keyless entry in the pocket (driver's side).
• Remote ignition.
• Battery preheating.
• External exit gate.
• LED lights – high and low beam.
• DRL: LED.
• Automatically adaptive LED lights.
• Automatic lighting.
• Lights out with delay.
• Adjustable height of the headlights.
• Electronic windows (front and rear).
• Closing all windows at once – with one touch.
• Rear window wiper.
• Electronically adjustable mirrors, heated and folding when the car is locked.

Entertainment, Control and Comfort:

• 8.8-inch LCD dashboard.
• Multifunctional steering wheel with controls.
• Manual adjustment: up-down & front-back.
• Electronically selected gears.

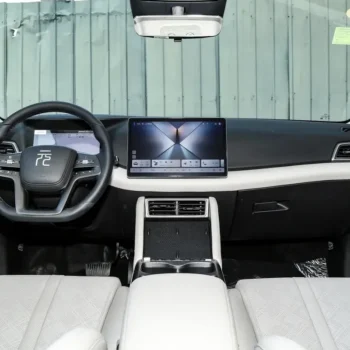

• Central LCD touch screen.
• PCentral screen size: 12.8 inches.
• DiLink intelligent system.
• BYD D100 chip.
• Bluetooth technology for connection to your phone.
• Voice recognition system.
• Air conditioner.
• Wake-Up World voice assistant – in four zones inside the car.
• App store for downloading applications.
• 6-speaker audio system
• Power ports: 2 front & 2 rear.
• Wireless phone charging: 50Watt.
• Leather-wrapped steering wheel.

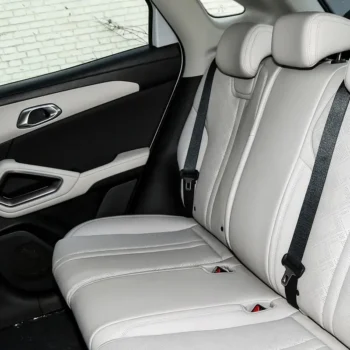

• Comfortable chairs with leather material.
• Driver's seat: fore-aft movement, backrest adjustment and two-level height adjustment.
• Passenger seat (front): fore-aft movement and backrest adjustment.
• Air conditioning outlet at the back.
• 30/70 folding rear passenger seats.
